Introduction to geom_tukey

The package includes a geom (geom_tukey) that can be used to easily overlay compact letter displays onto ggplot2 figures.

penguins |> tidyr::drop_na(sex, species) |>
  ggplot(aes(x = species, y = body_mass_g)) +
  geom_boxplot() +
  geom_jitter(col = "slategray", alpha = 0.6) +

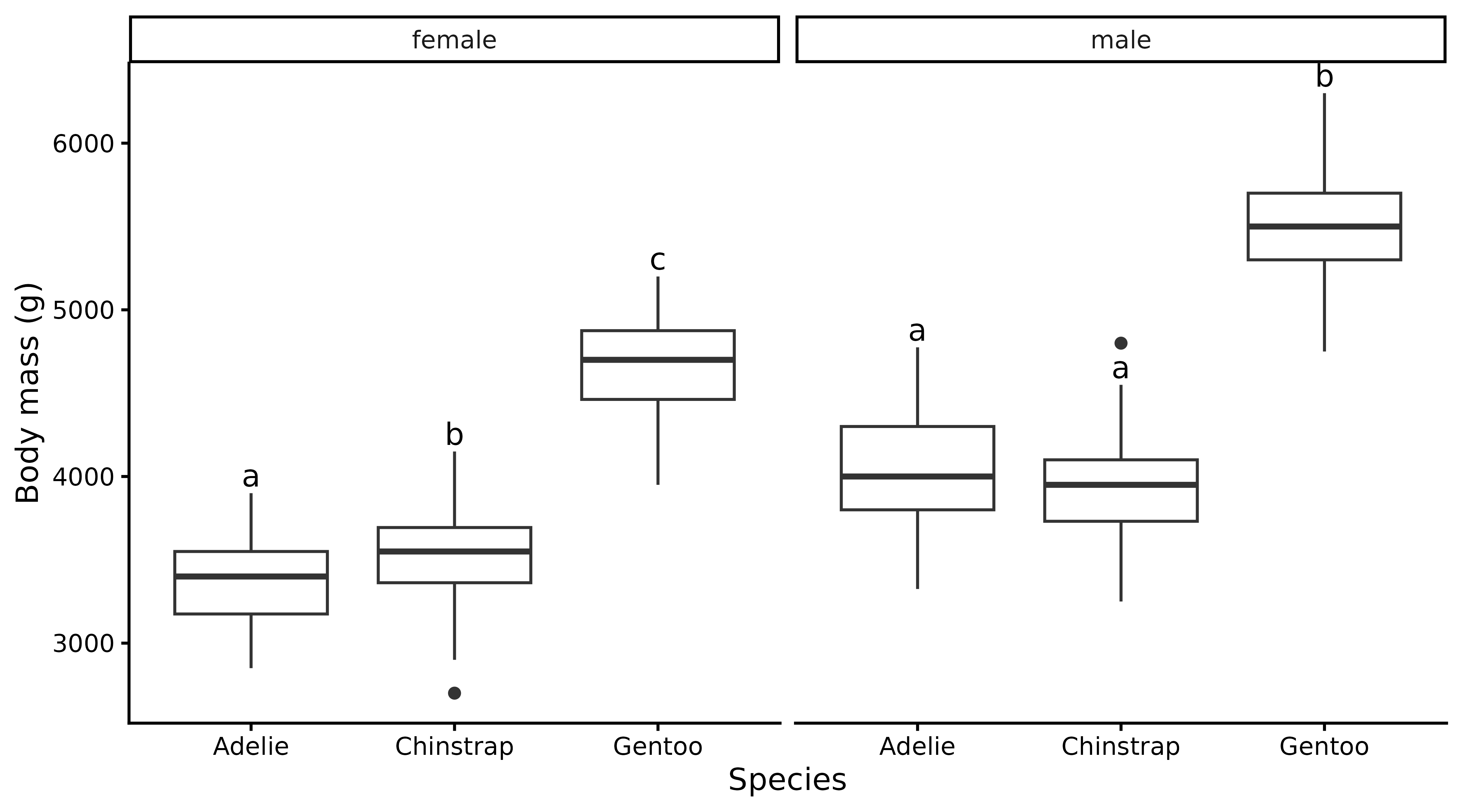

  facet_wrap(~sex) +
  geom_tukey(where = "whisker") +
  ylab("Body mass (g)") +
  xlab("Species") + theme_classic()

Customization

The geom includes several arguments that can be modified to choose the statistics that are done to generate the compact letter displays, as well as adjusting their position on the plot. The test argument determines what kind of statistical test is conducted, while the type argument controls whether statistics are done two-wayly (e.g. with a two-way ANOVA) or one-wayly (e.g. in separate one-way ANOVAs for each faceting variable). There are also several arguments that can be used to adjust the positioning of the letters, including where to choose the basic position of the labels. Finer adjustments can then be made using the hjust and vjust arguments to nudge the letters horizontally or vertically.

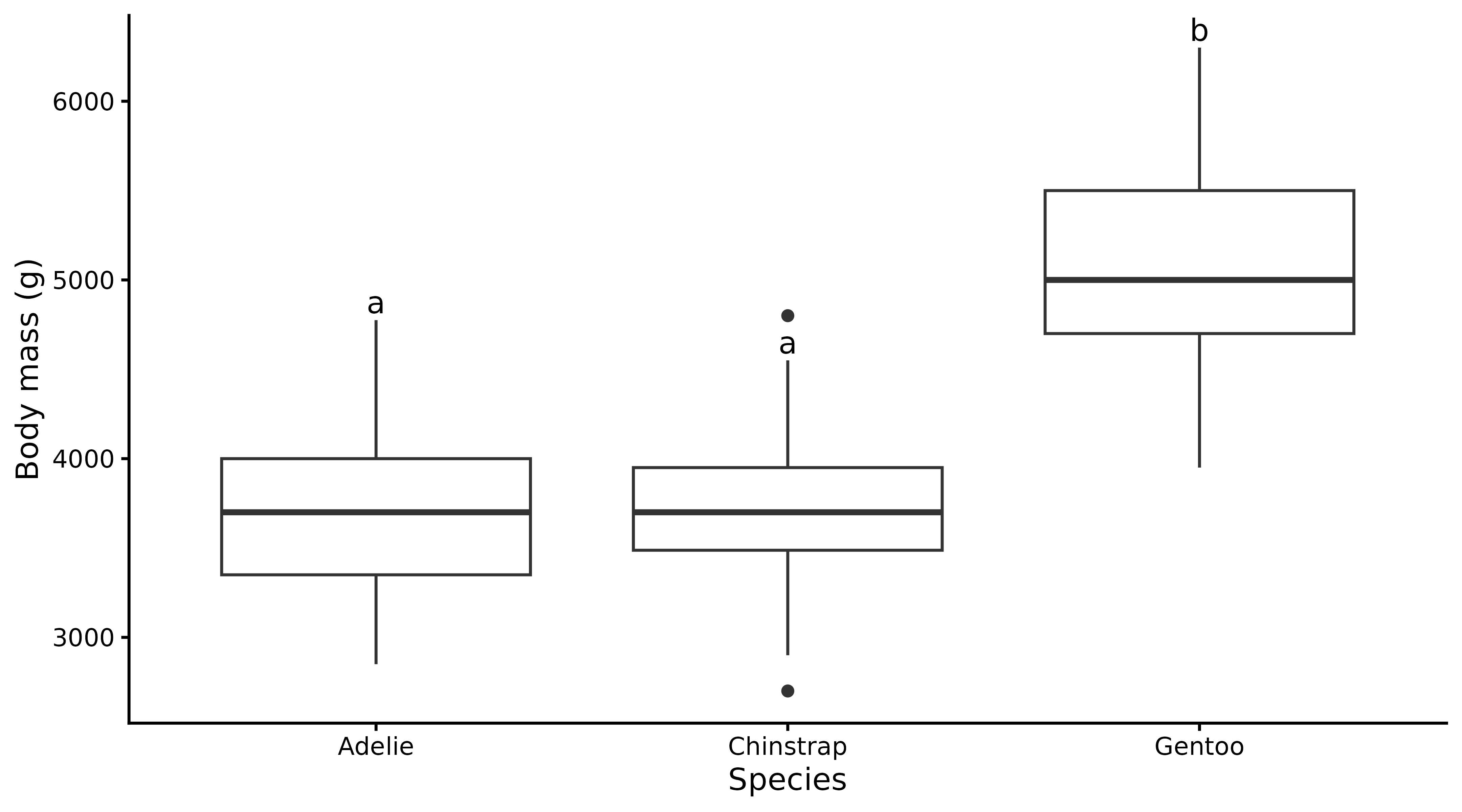

penguins |> tidyr::drop_na(sex, species) |>
  ggplot(aes(x=species, y=body_mass_g)) +
  geom_boxplot() +
  facet_wrap(~sex) +
  geom_tukey(where = "box", vjust = -0.2, hjust=-0.2) +
  ylab("Body mass (g)") +
  xlab("Species") + theme_classic()

Custom symbols with Letters

The Letters argument accepts any character vector, letting you swap in Greek letters, Unicode symbols, or anything else in place of the default a, b, c, …:

# Greek letters
penguins |> tidyr::drop_na(sex, species) |>
  ggplot(aes(x = species, y = body_mass_g)) +
  geom_boxplot() +
  geom_tukey(Letters = c("α", "β", "γ", "δ"),
             hjust = -0.2,vjust=-0.3) +
  ylab("Body mass (g)") + xlab("Species") + theme_classic()

# Unicode symbols: ★ ✦ ♠ ♣
penguins |> tidyr::drop_na(sex, species) |>
  ggplot(aes(x = species, y = body_mass_g)) +
  geom_boxplot() +
  geom_tukey(Letters = c("★", "✦", "♠", "♣"), size = 5) +
  ylab("Body mass (g)") + xlab("Species") + theme_classic()

Introduction to boxplot_letters

The package also includes a convenience function boxplot_letters for quickly creating boxplots with compact letter displays using even simpler syntax.

Creating a simple boxplot

boxplot_letters(data = penguins, x = species, y = body_mass_g,
                vjust = -0.5, hjust = -0.3, type = "two-way",
                lab_size = 4)

Creating multipanel plots

boxplot_letters also supported faceting using the group argument. For example, we might want to break our penguin data down by sex:

boxplot_letters(data = penguins, x = species, y = body_mass_g,
                group=sex, vjust=-0.5, hjust = -0.2)

Or look for sex differences within each of our three penguin species:

boxplot_letters(data = penguins, x = sex, y = body_mass_g,
                group = species, vjust = -0.5, hjust = -0.2)

When there is a grouping variable, there are (at least) two possible ways to run the statistics that may yield different results. By default a two-way test is conducted where TukeyHSD is run on a full ANOVA (aov) with species and sex as an interaction, returning all pairwise comparisons of these two factors. If the comparisons are independent, type="one-way" can be selected to run independent Tukey tests within each group.

boxplot_letters(data = penguins, x = species, y = body_mass_g,
                group = sex, type = "one-way",
                vjust = -0.5, hjust = -0.2)

Raw data can also be plotted in various ways using the raw argument to specify the desired geom for plotting raw data: e.g. geom_point (points), geom_dotplot (dots), geom_jitter (jitter).

boxplot_letters(data = penguins, x = species, y = body_mass_g,
                group = sex, vjust = -0.5, hjust = -0.2,
                raw = "jitter", alpha = 0.6, pt_col = species)

Using tukey_letters with custom models

geom_tukey fits its own model internally, which works well for standard one-way and two-way ANOVAs. For more complex models — mixed effects, GLMs, or any model type supported by emmeans — use tukey_letters instead. You fit the model yourself and pass it to tukey_letters, which returns a plain data frame you add to your plot with geom_text.

if (requireNamespace("emmeans", quietly = TRUE) &&
    requireNamespace("multcomp", quietly = TRUE)) {
  mod <- lm(body_mass_g ~ species, data = penguins)
  ldf <- tukey_letters(mod, ~ species, data = penguins,
                       where = "whisker", adjust="sidak")
  penguins |>
    ggplot(aes(x = species, y = body_mass_g)) +
    geom_boxplot() +
    geom_text(data = ldf, aes(x = species, y = y, label = letter),
              vjust = -0.3) +
    ylab("Body mass (g)") + xlab("Species") + theme_classic()
}
#> Warning: Removed 2 rows containing non-finite outside the scale range
#> (`stat_boxplot()`).

By default (where = "emmean") letters are placed at the estimated marginal mean from the model — useful when the model’s fitted values differ meaningfully from the observed means, such as after covariate adjustment:

if (requireNamespace("emmeans", quietly = TRUE) &&
    requireNamespace("multcomp", quietly = TRUE)) {
    mod_cov <- lm(body_mass_g ~ species + bill_length_mm,
                  data = penguins)

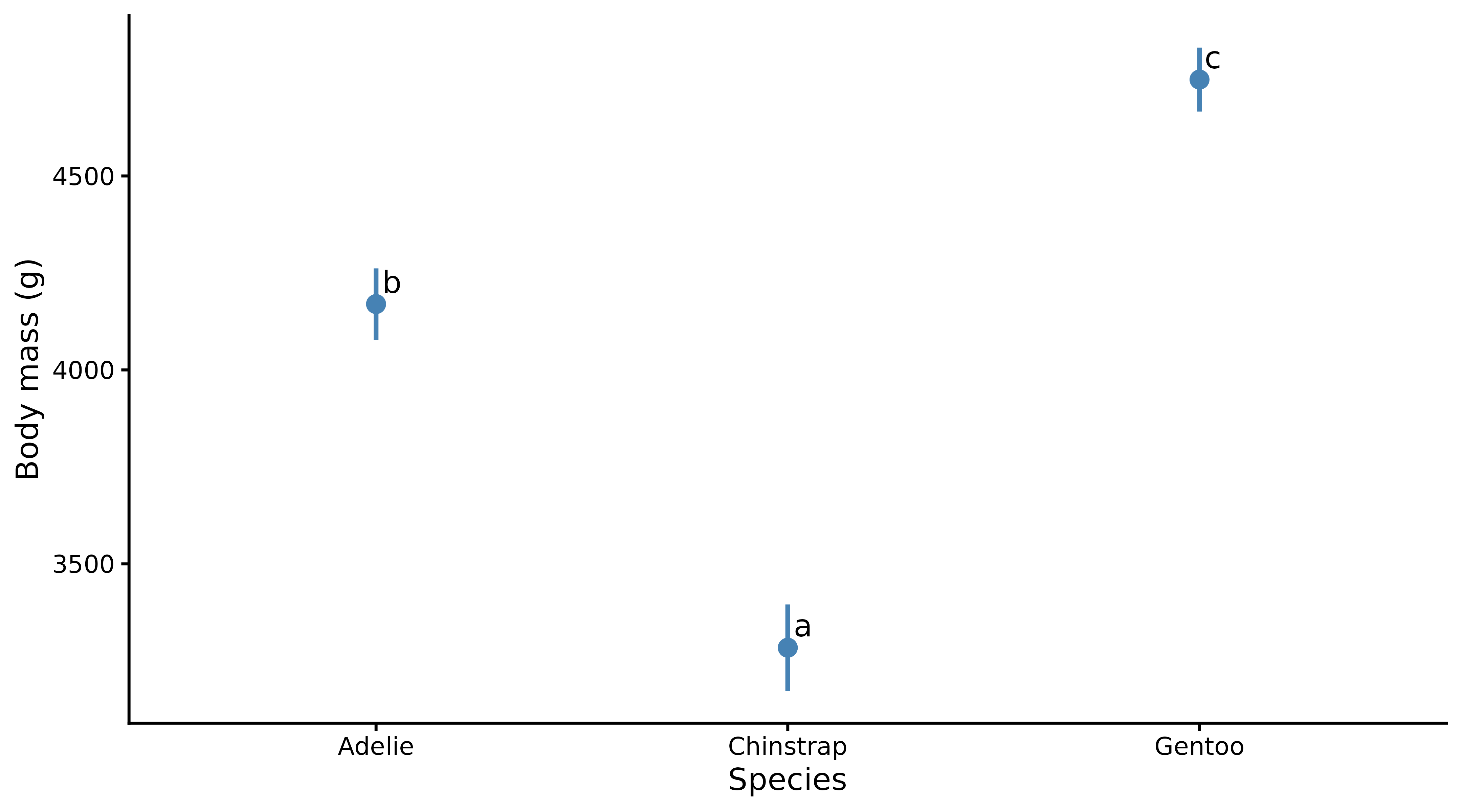

  em_df   <- as.data.frame(emmeans::emmeans(mod_cov, ~ species))
  ldf_cov <- tukey_letters(mod_cov, ~ species, adjust = "sidak")

  penguins |>
    ggplot(aes(x = species, y = body_mass_g)) +
    geom_pointrange(data = em_df,
                    aes(x = species, y = emmean,
                        ymin = lower.CL, ymax = upper.CL),
                    color = "steelblue", linewidth = 0.8) +
    geom_text(data = ldf_cov, aes(x = species, y = y, label = letter),
              vjust = -0.5, hjust=-0.3) +
    ylab("Body mass (g)") + xlab("Species") + theme_classic()
}

For faceted plots, use the by argument to condition comparisons on a second variable:

if (requireNamespace("emmeans", quietly = TRUE) &&
    requireNamespace("multcomp", quietly = TRUE)) {
  penguins_clean <- tidyr::drop_na(penguins, sex, body_mass_g)
  mod_sex <- lm(body_mass_g ~ species * sex, data = penguins_clean)
  ldf_sex <- tukey_letters(mod_sex, ~ species, by = "sex",
                           data = penguins_clean, where = "whisker",
                           adjust="sidak")
  penguins_clean |>
    ggplot(aes(x = species, y = body_mass_g)) +
    geom_boxplot() + facet_wrap(~sex) +
    geom_text(data = ldf_sex, aes(x = species, y = y, label = letter),
              vjust = -0.3) +
    ylab("Body mass (g)") + xlab("Species") + theme_classic()
}

Other types of plots

Dynamite plot

To create a dynamite plot (which I do not advocate):

data(iris)

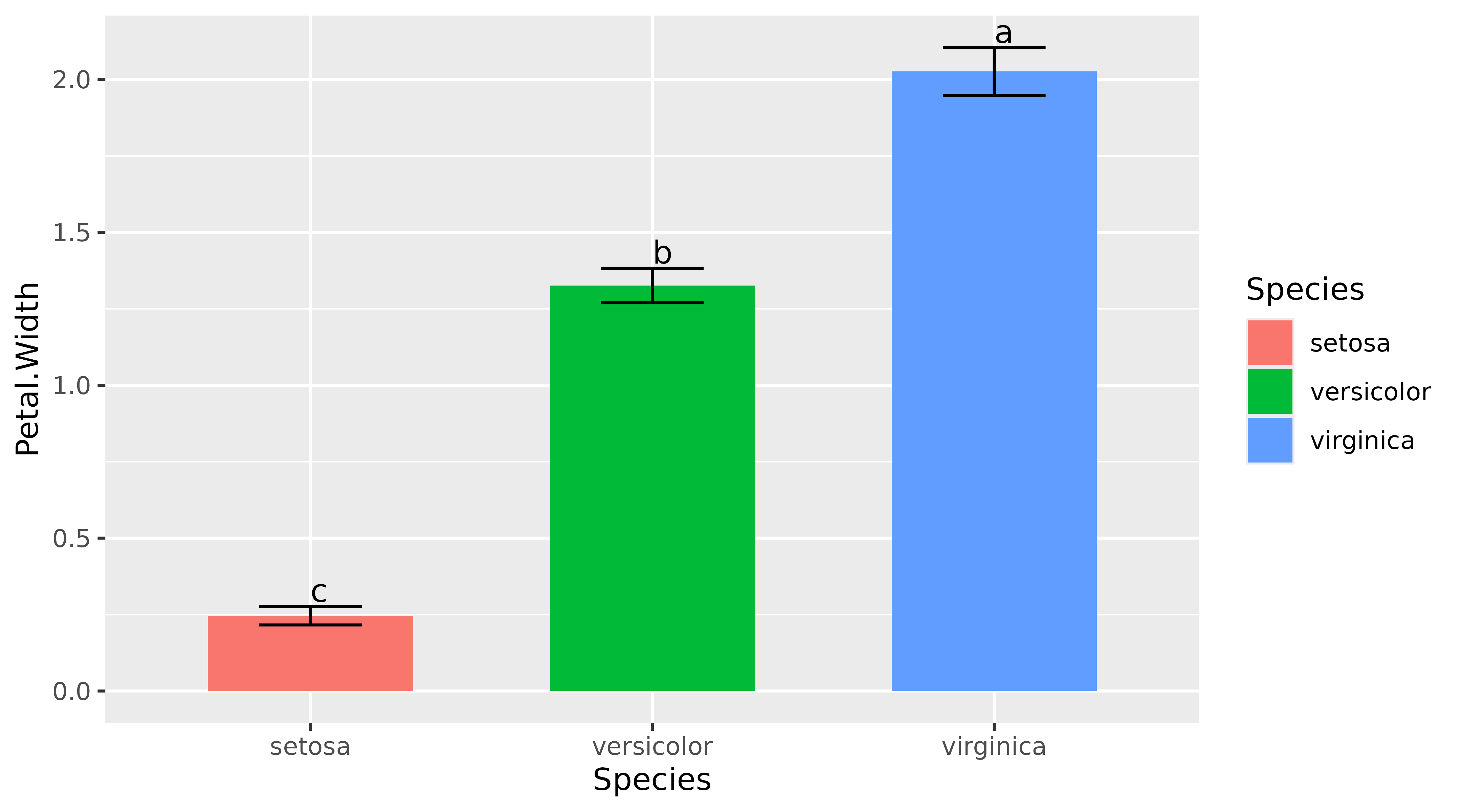

p<-ggplot(data = iris, aes(x=Species, y=Petal.Width)) +
  geom_bar(aes(fill=Species), position = "identity",
           stat = "summary", fun = "mean", width = 0.6) +
  stat_summary(fun.data = mean_cl_normal, geom = "errorbar",
               width = 0.3) +
  geom_tukey(where = "cl_normal")
p

Dot plot

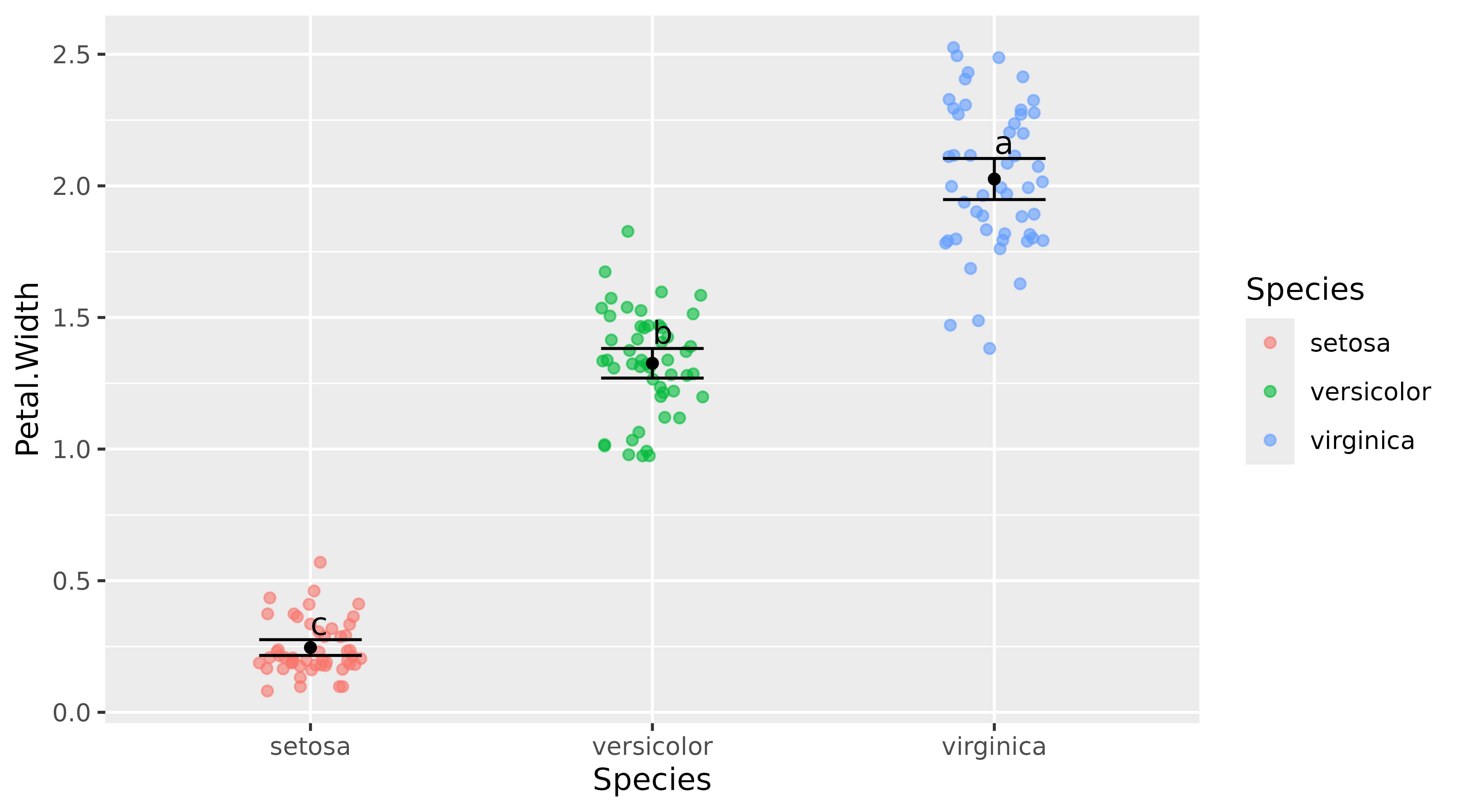

data(iris)
p<-ggplot(data = iris, aes(x = Species, y = Petal.Width)) +
  geom_jitter(aes(color = Species, fill = Species),
              alpha = 0.6, width = 0.15) +
  geom_point(aes(fill = Species), position = "identity",
             stat = "summary", fun = "mean") +
  stat_summary(fun.data = mean_cl_normal,
               geom = "errorbar", width = 0.3) +
  geom_tukey(where = "cl_normal") + guides(fill = "none")
p

References

Piepho, Hans-Peter. “An Algorithm for a Letter-Based Representation of All-Pairwise Comparisons.” Journal of Computational and Graphical Statistics 13, no. 2 (June 1, 2004): 456–66. https://doi.org/10.1198/1061860043515.

Piepho, Hans-Peter. “Letters in Mean Comparisons: What They Do and Don’t Mean.” Agronomy Journal 110, no. 2 (2018): 431–34. https://doi.org/10.2134/agronj2017.10.0580.

Graves S, Piepho H, Dorai-Raj LSwhfS (2019). multcompView: Visualizations of Paired Comparisons. R package version 0.1-8, (https://CRAN.R-project.org/package=multcompView)..)
